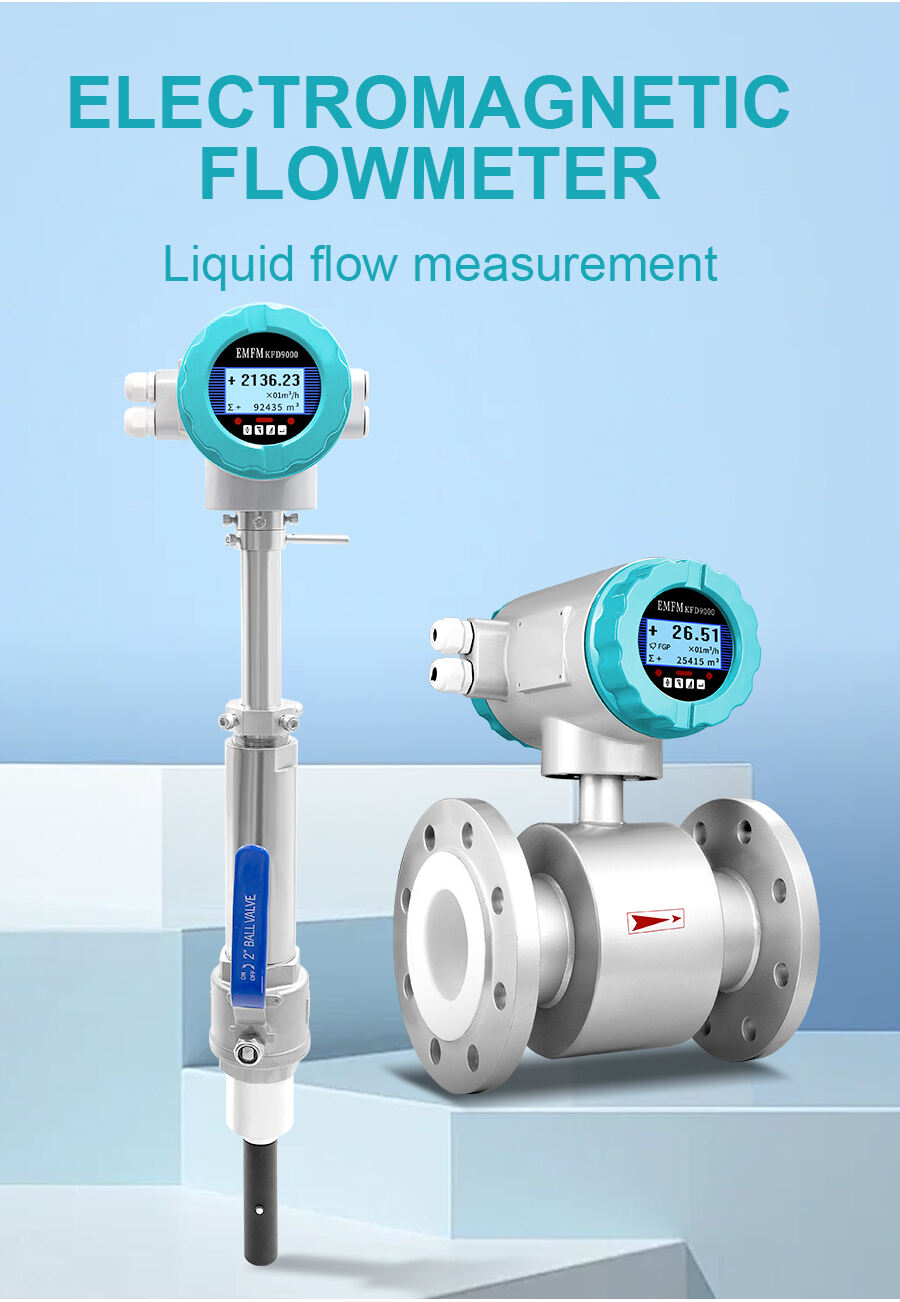

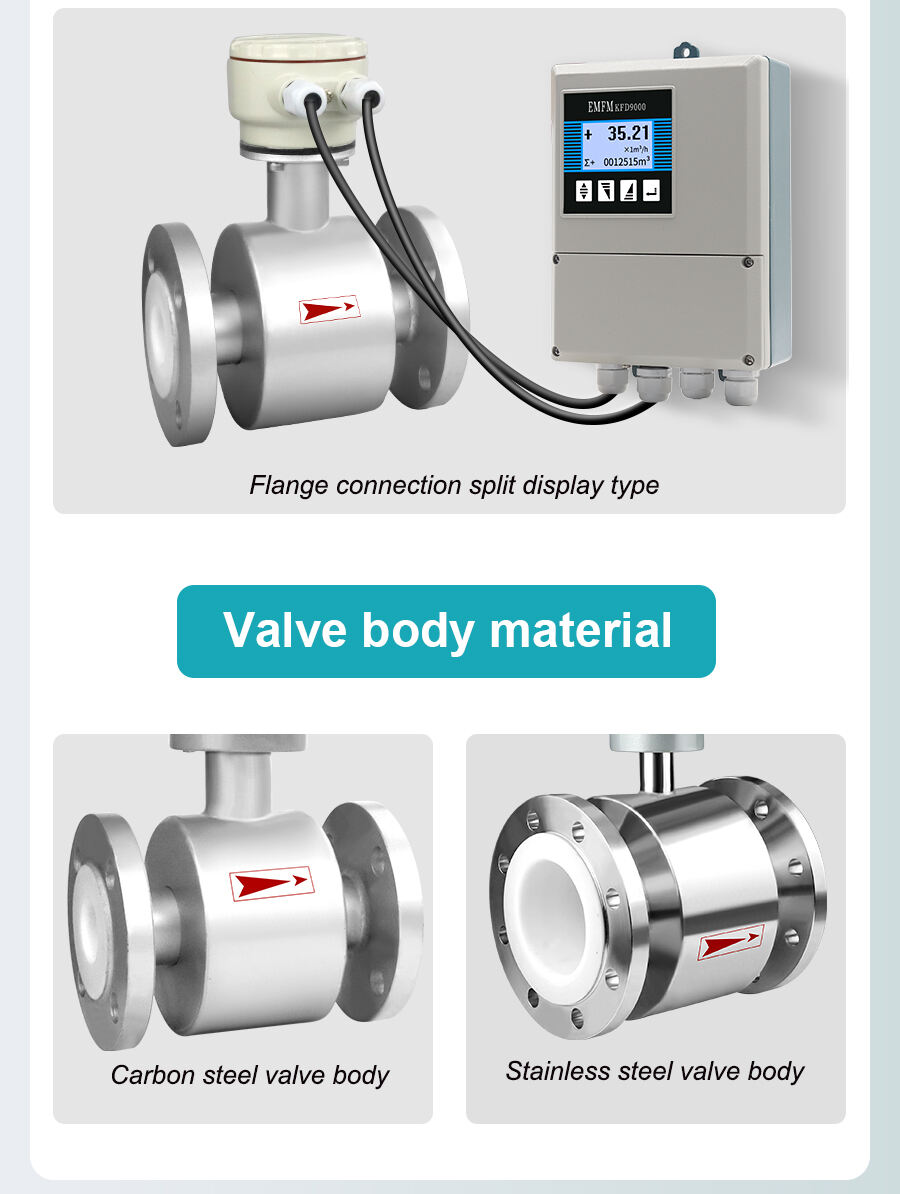

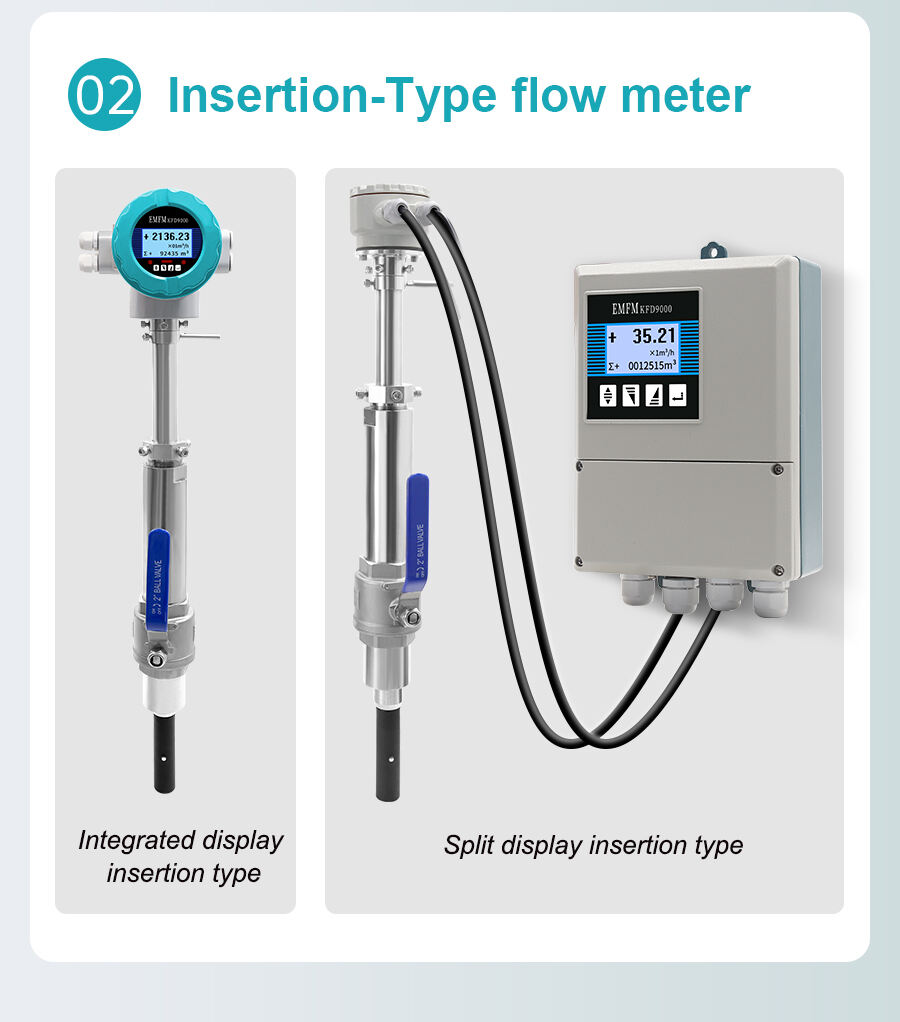

Electromagnetic Flow Meter

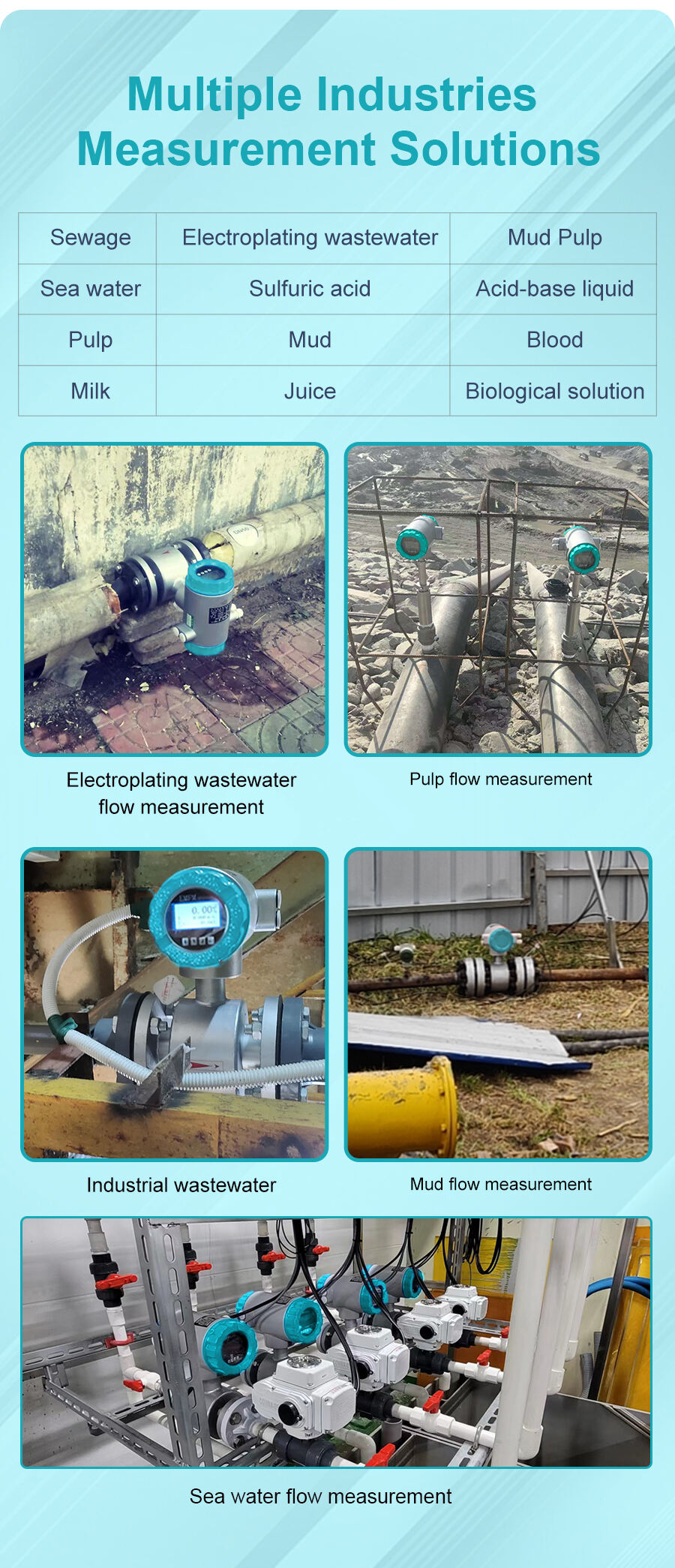

The GTLWGY Series turbine flowmeter is suitable for monitoring and measuring flow rates in water, milk, juice, seawater, and corrosive wastewater. Based on torque balancing technology, it is a high-precision velocity flowmeter with an accuracy of up to ±0.5%, excellent repeatability, and fast response. Its lightweight and rugged design ensures easy installation and low maintenance, making it ideal for applications in the petroleum, chemical, water treatment, and energy sectors. The sensor supports 4-20mA, pulse, and RS485 Modbus outputs, enabling seamless integration with control systems for quantitative batching and over-range alarms. For hazardous environments, we offer explosion-proof models certified to ExdIICT6 Gb. Customizable options include high-temperature resistance (180°C), product dimensions, and corrosion-resistant (PTFE) models.
Description

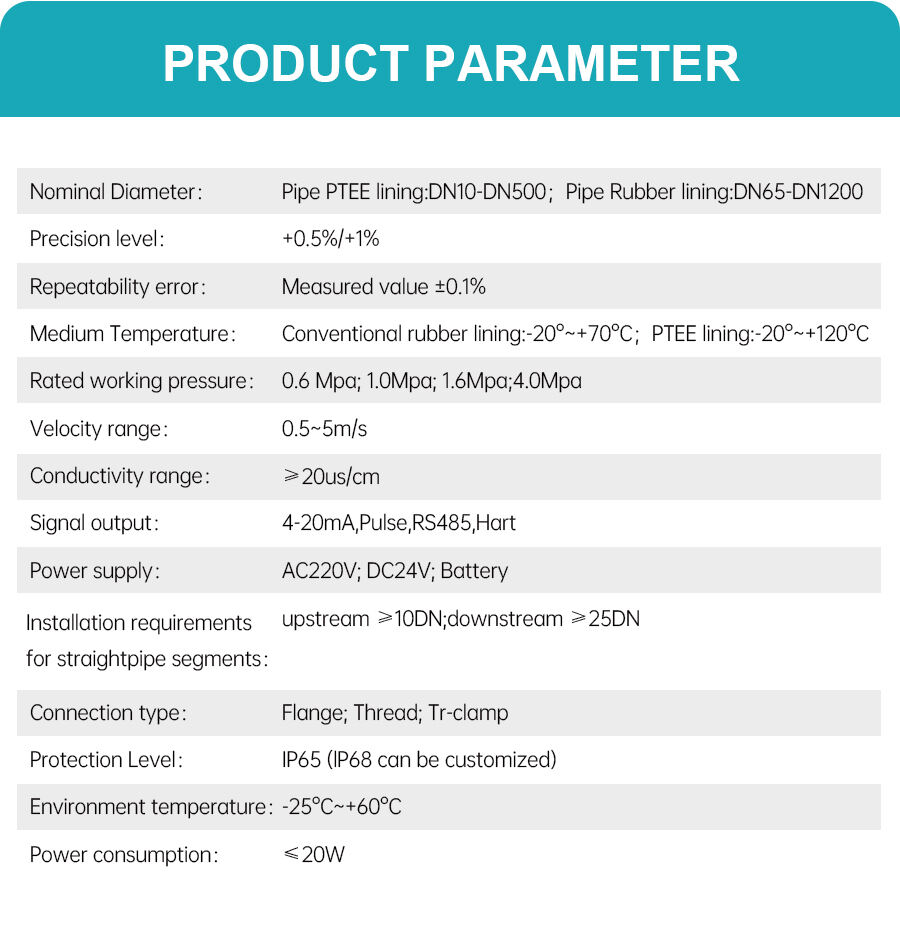

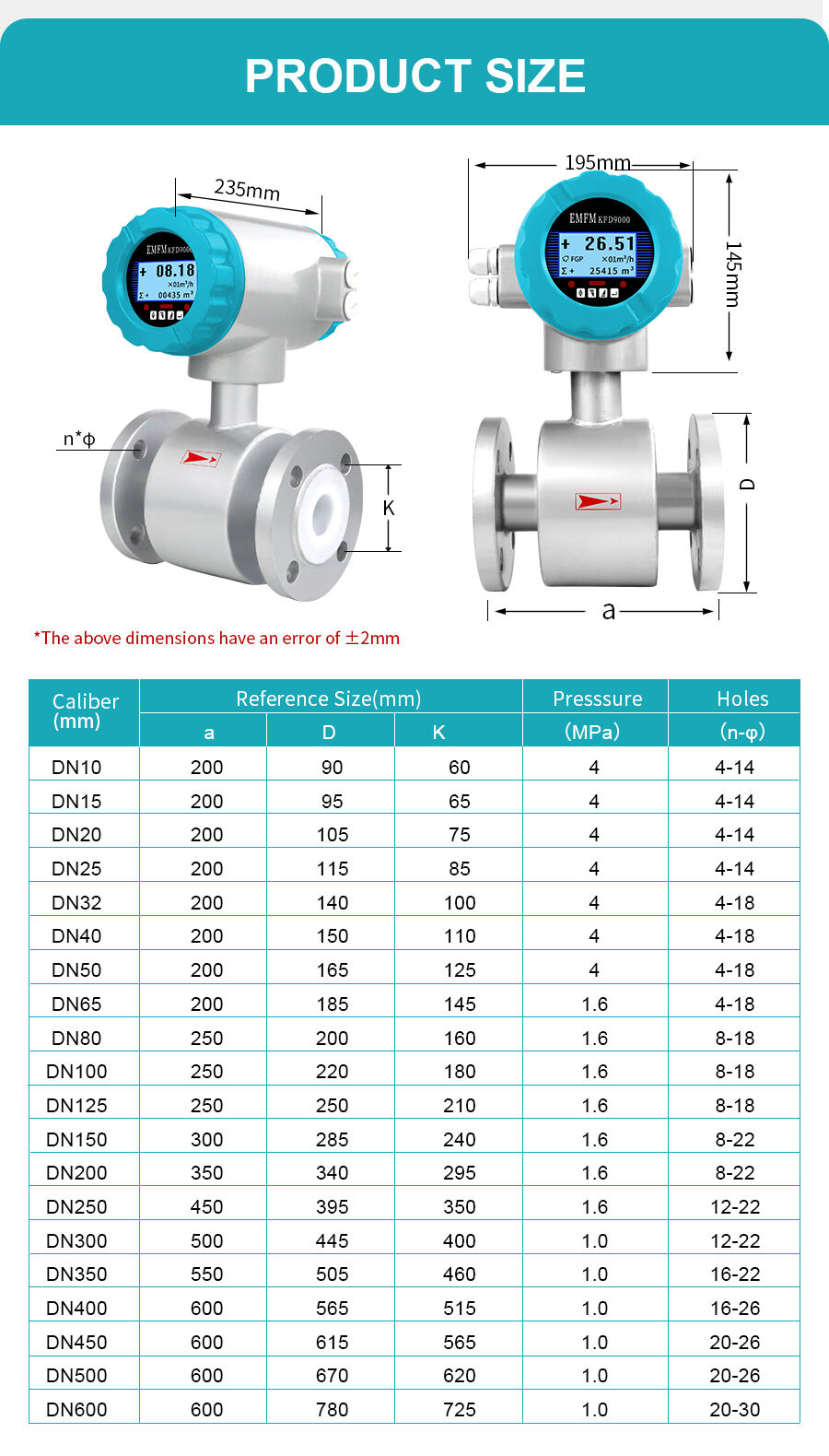

PRODUCT PARAMETER | |
Parameter Category |
Description |
Nominal Diameter |
Pipe PTEE lining: DN10 - DN500; Pipe Rubber lining: DN65 - DN1200 |
Precision level |
0.5 |
Repeatability error |
Measured value ±0.1% |
Medium Temperature |
Conventional rubber lining: -20° - +70°C; PTEE lining: -20° - +120°C |
Rated working pressure |
0.6 Mpa; 1.0Mpa; 1.6Mpa; 4.0Mpa |
Velocity range |
0.5 - 5m/s |
Conductivity range |
≥20us/cm |
Signal output |
4 - 20mA, Pulse, RS485, Hart |
Power supply |
AC220V; DC24V; Battery |
Installation requirements for straightpipe segments |
upstream ≥10DN; downstream ≥25DN |

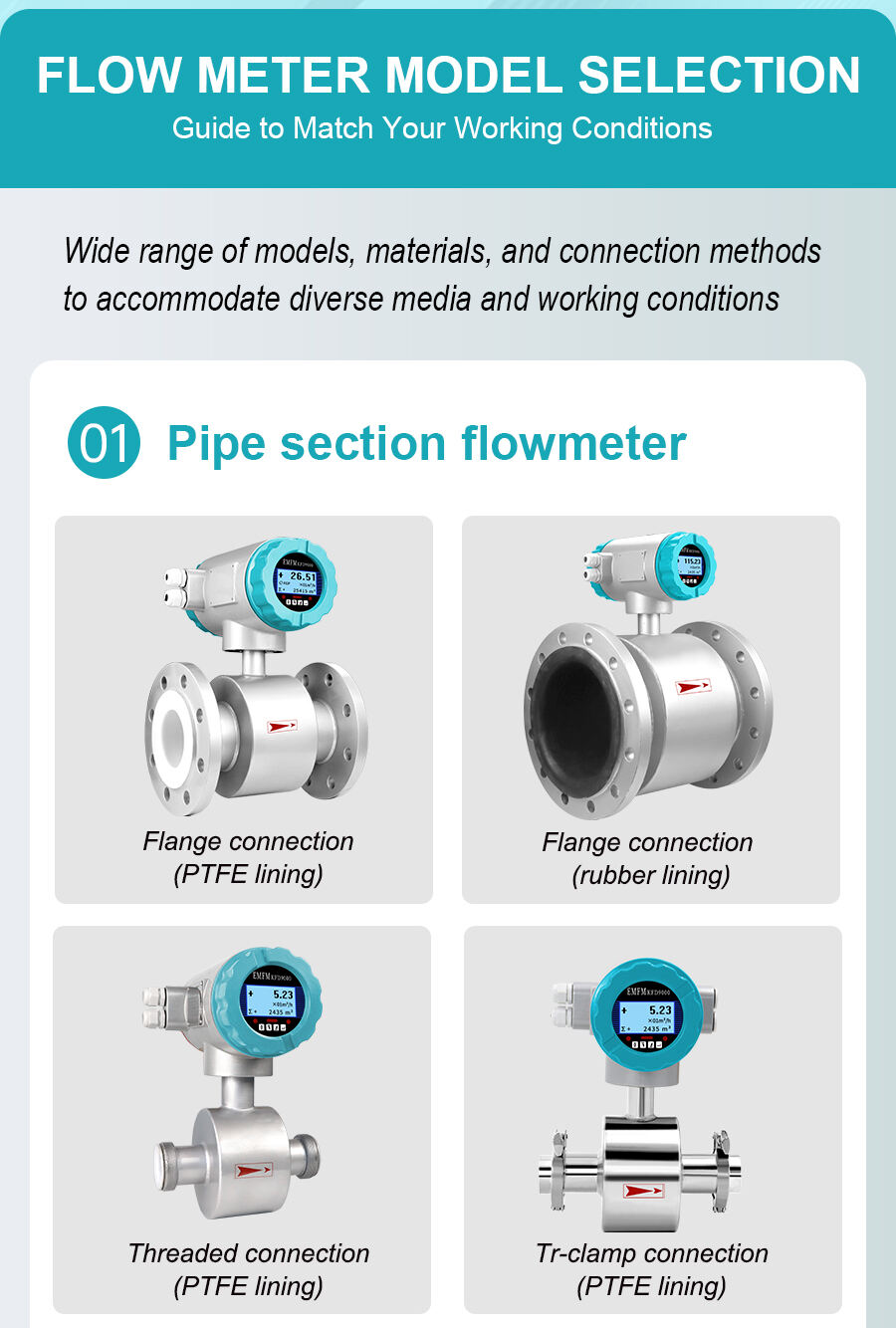

Connection type |
Flange; Thread; Tr - clamp |
Protection Level |
IP65 (IP68 can be customized) |
Environment temperature |
-25°C - +60°C |
Power consumption |
≤20W |

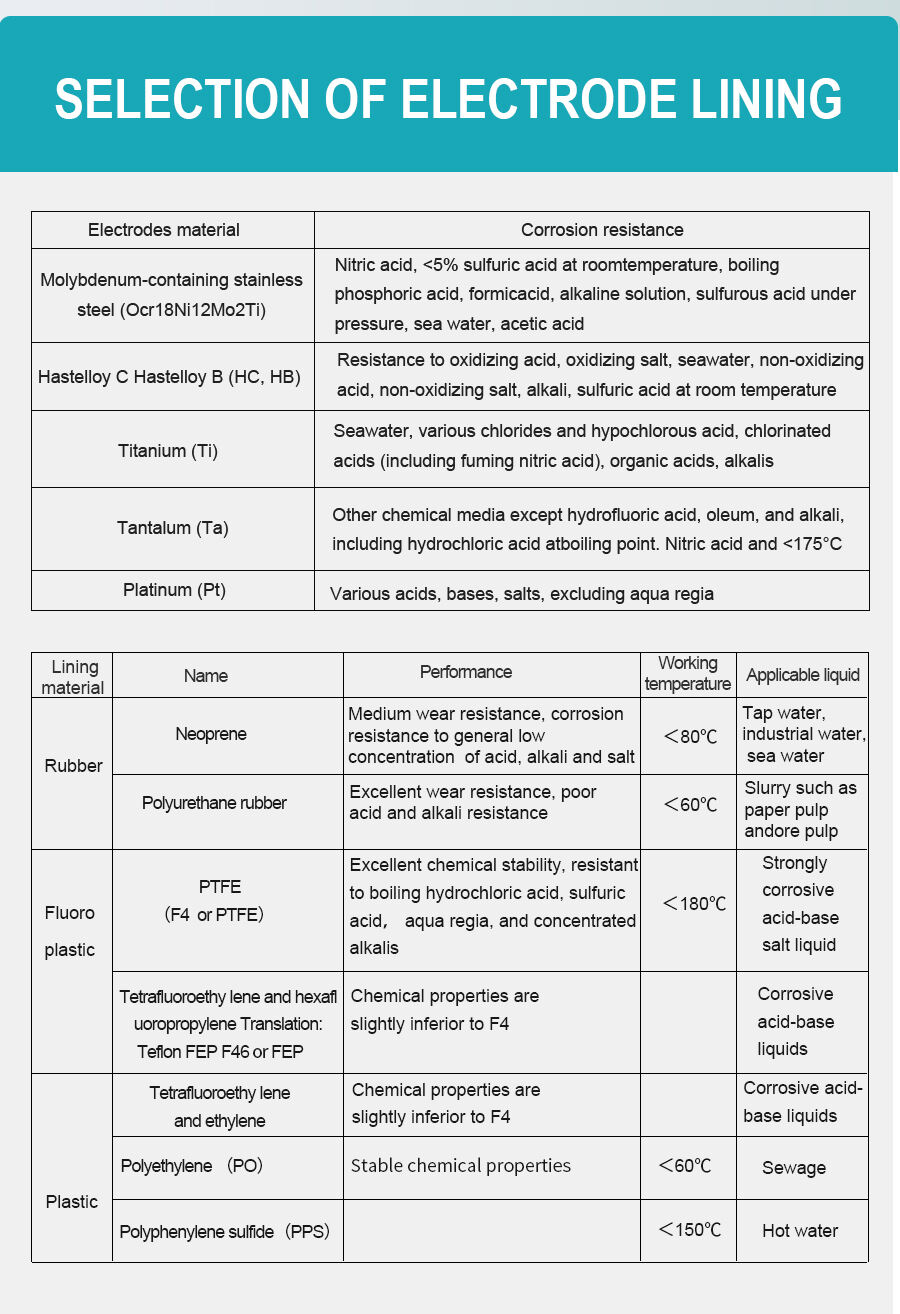

Selection of electrode and grounding ring materials
The material of the electrode should be selected according to the corrosiveness of the fluid being measured. Please check the relevant corrosion manual and conduct tests for special fluids.
Material |
Corrosion resistance |
Molybdenum-containing stainless steel (Ocr18Ni12Mo2Ti) |
Nitric acid, sulfuric acid <5% at room temperature, boiling phosphoric acid, formic acid, alkaline solution, sulfurous acid under pressure, sea water, acetic acid |
Hastelloy C Hastelloy B (HC, HB) |
Resistant to oxidizing acids, oxidizing salts, seawater, non-oxidizing acids, non-oxidizing salts, alkalis, and sulfuric acid at room temperature |
Titanium (Ti) |
Seawater, various chlorides and hypochlorous acid, chlorinated acids (including fuming nitric acid), organic acids, alkalis |
Tantalum (Ta) |
Chemical media other than hydrofluoric acid, oleum, and alkali, including boiling hydrochloric acid. Nitric acid <175℃ |
Platinum (Pt) |
Various acids, bases, salts, excluding aqua regia |
Lining material selection instructions
The lining material should be selected according to the corrosiveness, abrasiveness and temperature of the measured medium.
Lining material |
name |
symbol |
performance |
temperature |
Applicable liquid |
rubber |
Neoprene |
Moderate wear resistance, resistant to general low concentration acid, alkali and salt corrosion |
<80℃ |
Tap water, industrial water, sea water |
|
Polyurethane rubber |
Excellent wear resistance, poor acid and alkali resistance |
60<℃ |
Pulp, mineral pulp and other slurries |
||
Fluoroplastic |
Polytetrafluoroethylene |
F4 or PTFE |
The chemical properties are very stable, resistant to corrosion from boiling hydrochloric acid, sulfuric acid, aqua regia, and concentrated alkali |
120<℃ |
Strongly corrosive acid, alkali and salt liquids |
|
Tetrafluoroethylene and hexafluoropropylene translation: Teflon FEP |
F46 or FEP |
The chemical performance is slightly inferior to F4 |
<80℃ |
Corrosive acid, alkali and salt liquids |
|
plastic |
Tetrafluoroethylene and ethylene |
F4 or ETFE |
The chemical performance is slightly inferior to F4 |
<80℃ |
Corrosive acid, alkali and salt liquids |
Polyethylene |
PO |
Stable chemical properties |
60<℃ |
Sewage |
|
Polyphenylene sulfide |
PPS |
150<℃ |
Hot water |

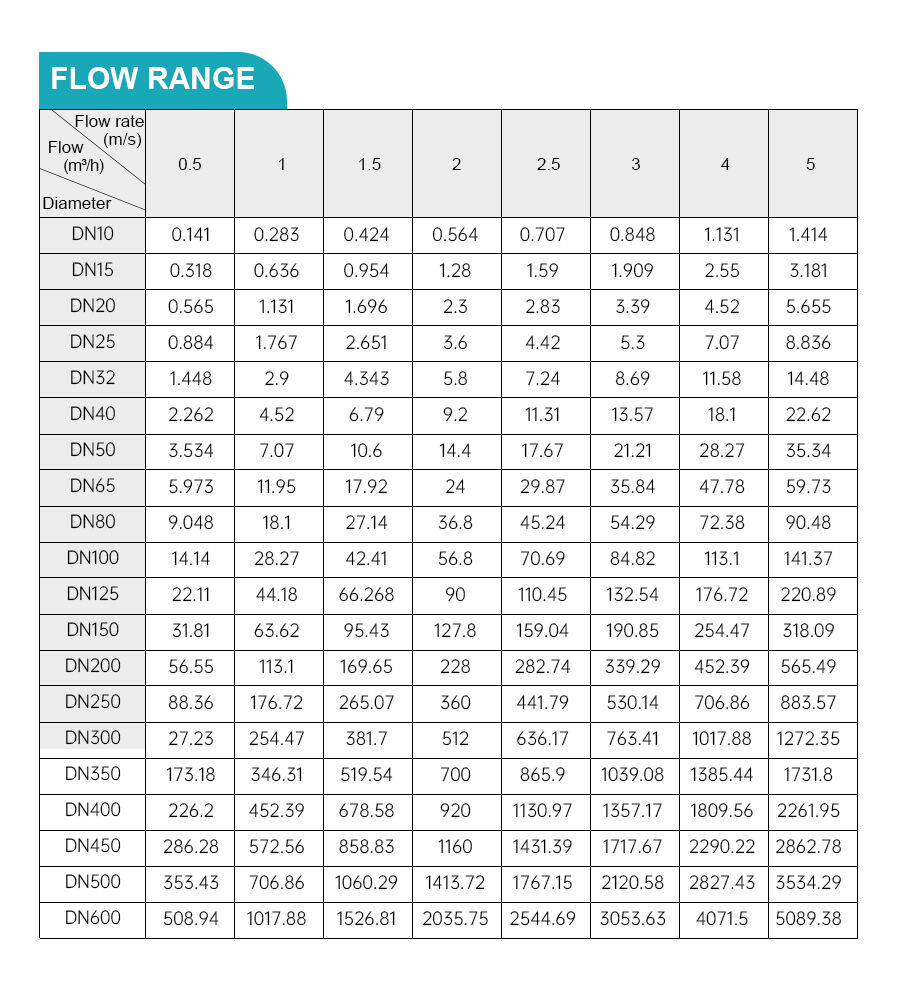

Selection of flow range
Note: It is recommended to use the flow range valuecorresponding to the flow rate of 0.5~5m/Sto ensure measurement accuracy.
Diameter(mm) |
Flow Velocity DN10-DN600 0.141m³/h-5089.38m³/h |
|||||||
Velocity 0.5m/s |
Velocity 1m/s |
Velocity 1.5m/s |
Velocity 2m/s |
Velocity 2.5m/s |
Velocity 3m/s |
Velocity 4m/s |
Velocity 5m/s |
|
DN10 |
0.141 |
0.283 |
0.424 |
0.564 |
0.707 |
0.848 |
1.131 |
1.414 |
DN15 |
0.318 |
0.636 |
0.954 |
1.28 |
1.59 |
1.909 |
2.55 |
3.181 |
DN20 |
0.565 |
1.131 |
1.696 |
2.3 |
2.83 |
3.39 |
4.52 |
5.655 |
DN25 |
0.884 |
1.767 |
2.651 |
3.6 |
4.42 |
5.3 |
7.07 |
8.836 |
DN32 |
1.448 |
2.9 |
4.343 |
5.8 |
7.24 |
8.69 |
11.58 |
14.48 |
DN40 |
2.262 |
4.52 |
6.79 |
9.2 |
11.31 |
13.57 |
18.1 |
22.62 |
DN50 |
3.534 |
7.07 |
10.6 |
14.4 |
17.67 |
21.21 |
28.27 |
35.34 |
DN65 |
5.973 |
11.95 |
17.92 |
24 |
29.87 |
35.84 |
47.78 |
59.73 |
DN80 |
9.048 |
18.1 |
27.14 |
36.8 |
45.24 |
54.29 |
72.38 |
90.48 |
DN100 |
14.14 |
28.27 |
42.41 |
56.8 |
70.69 |
84.82 |
113.1 |
141.37 |
DN125 |
22.11 |
44.18 |
66.268 |
90 |
110.45 |
132.54 |
176.72 |
220.89 |
DN150 |
31.81 |
63.62 |
95.43 |
127.8 |
159.04 |
190.85 |
254.47 |
318.09 |
DN200 |
56.55 |
113.1 |
169.65 |
228 |
282.74 |
339.29 |
452.39 |
565.49 |
DN250 |
88.36 |
176.72 |
265.07 |
360 |
441.79 |
530.14 |
706.86 |
883.57 |
DN300 |
27.23 |
254.47 |
381.7 |
512 |
636.17 |
763.41 |
1017.88 |
1272.35 |
DN350 |
173.18 |
346.31 |
519.54 |
700 |
865.9 |
1039.08 |
1385.44 |
1731.8 |
DN400 |
226.2 |
452.39 |
678.58 |
920 |
1130.97 |
1357.17 |
1809.56 |
2261.95 |
DN450 |
286.28 |
572.56 |
858.83 |
1160 |
1431.39 |
1717.67 |
2290.22 |
2862.78 |
DN500 |
353.43 |
706.86 |
1060.29 |
1413.72 |
1767.15 |
2120.58 |
2827.43 |
3534.29 |
DN600 |
508.94 |
1017.88 |
1526.81 |
2035.75 |
2544.69 |
3053.63 |
4071.5 |
5089.38 |
